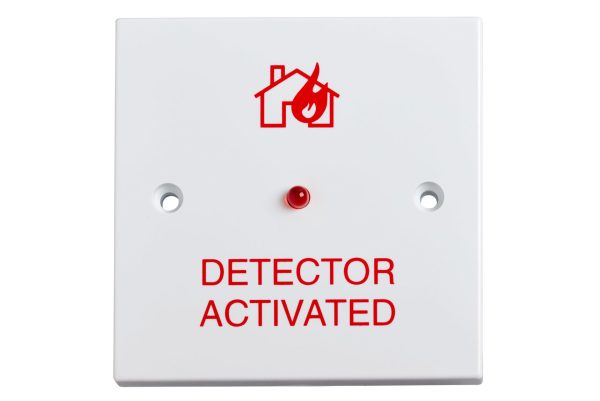

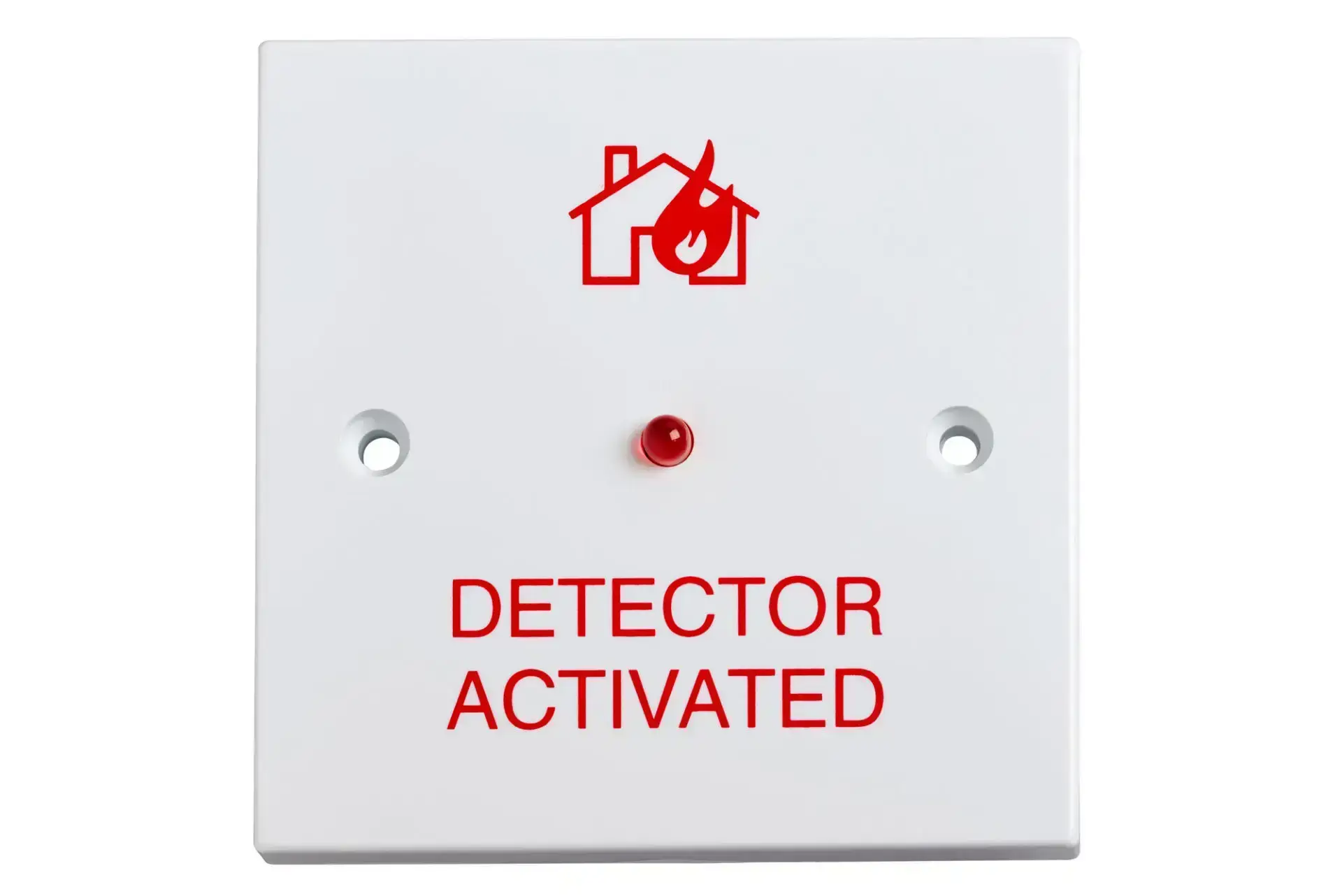

Simple to install on industry standard 60mm screw fixing centres, this LED indicator includes options for connecting to a conventional system via an in built resistor or directly to an addressable detector bypassing the resistor.
With a range of selectable flash options, the product is suitable for a wide range of applications.
Key Features
Quick First fix installation.
Wide operating voltage.
Low power consumption.
High output mode.
Individual reverse polarity monitoring of pre-alarm and alarm circuits.
Selectable flash options.
Fully synchronised.
IP65 rated with Deep base.
Large EN54-23 coverage area.
| Width | 86mm |
|---|---|
| Height | 86mm |
| Depth | 10mm |
| Fixing Centres | 60mm |
| Material | White ABS |
| Body Colour | White |

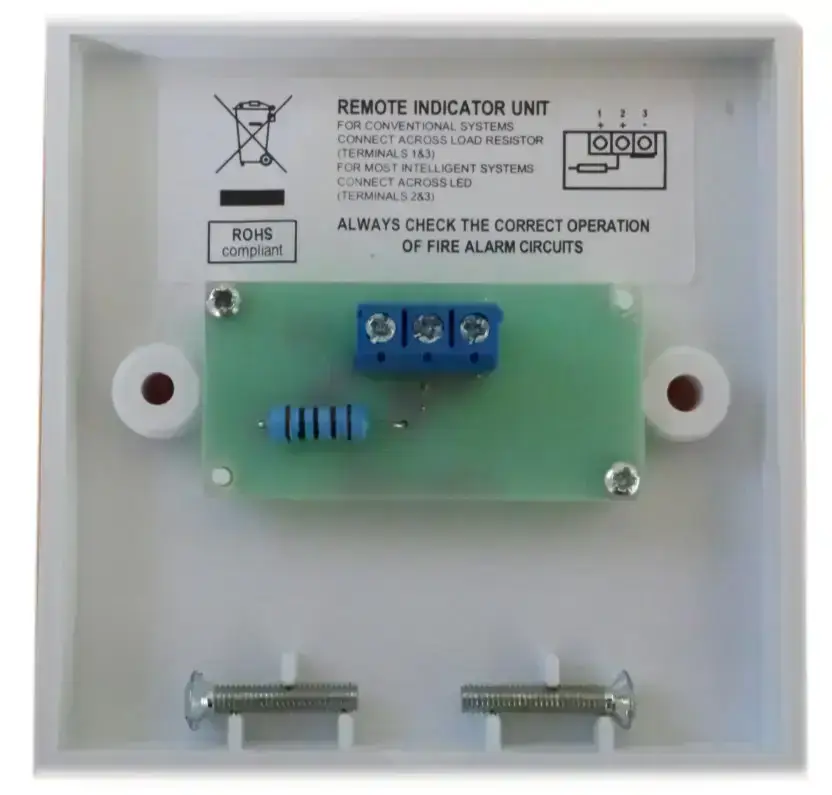

| Conventional Connection | 1K Ohm + LED |
| Addressable Connection | LED |
| Fixing Method | 2 x M3.5 x 20mm screws |
| Application Type | In Door Use |
| Wiring | Terminals up to 1.5mm² |
